| TAP | |
| TYPE: | Proton Kitchen Mixer |
| MODEL NUMBER: | 17175b |
| RANGE: | Proton |
| FINISH: | Black |
| STYLE: | Swivel |
| DIMENSIONS: |
294mm(H), 254mm(D), 48mm(W) |
| TAP SWIVEL: | 360˚ |
| CUT-OUT SIZE: | ∅ 33.5mm |
| CARTRIDGE DIAMETER: |
∅ 25mm |
| WELS: | 4 star/7 Lpm |
| MIN. (PSI): | 7.25 |
| MAX. (PSI): | 72.5 |
| MIN. (kPa): | 50kPa |
| MAX. (kPa): | 500kPa |
| WARRANTY: | 5 Years parts & labour |
| 15 Years replacement cartridge | |
| SINK | |
| TYPE: | Franke Kubus 740mm Single Bowl Undermount Sink |
| MODEL NUMBER: | KBG110-74B-ON |
| RANGE: | Kubus |
| SURFACE FINISH: | Onyx Black - Fragranite |
| NUMBER OF BOWLS: | 1 |
| CABINET SIZE: | 900mm (recommended) |
| OVERALL SINK SIZE: | 802 x 460mm |
| BOWL SIZE: | 720 x 390 x 200mm |
| BOWL CAPACITY: | 56L |
| CUT-OUT SIZE: | 742mmW x 410mmD |
| INSTALL TYPE: | Undermount |
| BOWL RADIUS: | 25mm |
| OVERFLOW: | Yes |
| DRAINER TYPE: | None (Optional accessory) |
| WASTE OUTLET: | Semi Integrated Waste |
| REMOTE WASTE PLUG: | No |
| TAP HOLE: | No |
| WARRANTY: | 50 Years (T&C's apply) |
| ACCESSORIES INCLUDED: | None |
| Bowl Sizes are measured in W x H x D (mm) | |
| TECHNICAL DIAGRAM - SINK: |  |

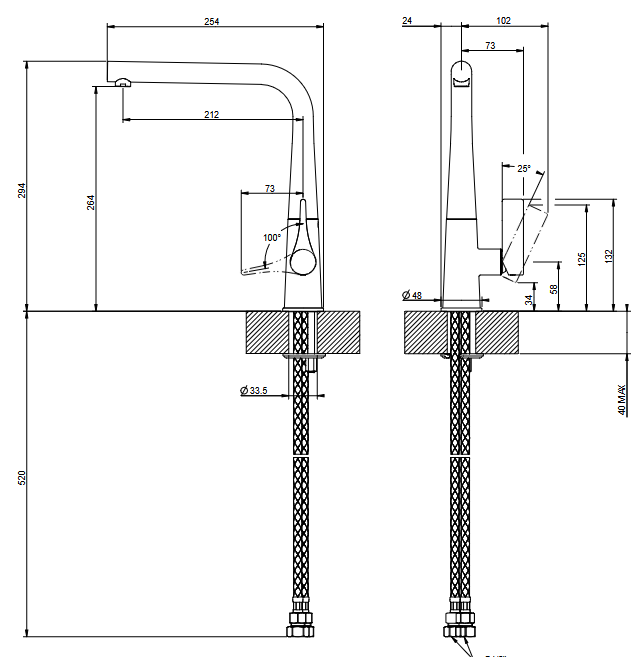

| TECHNICAL DIAGRAM - TAP: |  |
SINK - 50 YEAR WARRANTY TAP - 5 YEARS PARTS & LABOUR + 15 YEAR CARTRIDGE WARRANTY
