OVERVIEW
| Type: Island decor rangehoods with energy-efficient LED lighting and light-touch switches for easy use. |
| Model: DA 4248 V D Puristic Varia |
CONSTRUCTION TYPE
| Island rangehood |
OPERATING MODES
| Type of air guide: Exhaust air |
DESIGN
| Colour: Stainless steel |
USER CONVENIENCE
| Miele@home |
| Automatic function Con@ctivity |
| Electronic controls |
| Controls: Light-touch switches with LEDs |
| Miele@mobile app |
| Power levels (number without Booster level): 3 |
| Booster settings: 1 |
| Programmable Booster level switch-off |
| Grease filter saturation indicator |
| Silence package |
| Motor-operated rangehoods |
| Easy-to-clean canopy interior – CleanCover |
| Run-on time 5/15 min. |
EFFICIENCY AND SUSTAINABILITY
| PowerManagement system |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply): 6 |
LIGHTING
| LED |
| Number x W: 4 x 3 W |
| Light intensity in Lx: 600 lx |
| Colour temperature in K: 3500 Kelvin |
| Dimmer function |
BLOWER
| Fan power (m³/h): 990 |
| Dual-action blower |
| DC motor |
EXTRACTION
| Air throughput in Level 1 (m³/h) according to EN 61591: 290 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 430 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 600 |
| Air throughput with Booster setting 1 (m³/h): 820 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 50 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 60 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 67 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 35 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 45 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 52 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 75 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 60 |
SAFETY
| Safety shut-off |
TECHNICAL DATA
| Overall rangehood height for extraction mode and external in mm: 755–1045 |
| Overall height for extraction mode and external mode rangehoods in mm: 1045 |
| Net weight in kg: 45 |
| Hard-wired connection |
| Total rated load in kW: 0.417 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Frequency in Hz: 50 |
| Number of phases: 1 |
| Overall height for vented and external in in. (mm): 755 |
| Canopy width in in. (mm): 1198 |
| Canopy height in in. (mm): 70 |
| Depth of hood canopy in in. (mm): 698 |
INSTALLATION NOTES
| Extraction ducting connection at top |
| Diameter of extraction ducting connection in mm: 150 |
| Telescopic chimney |
ACCESSORIES SUPPLIED
| Non-return flap |

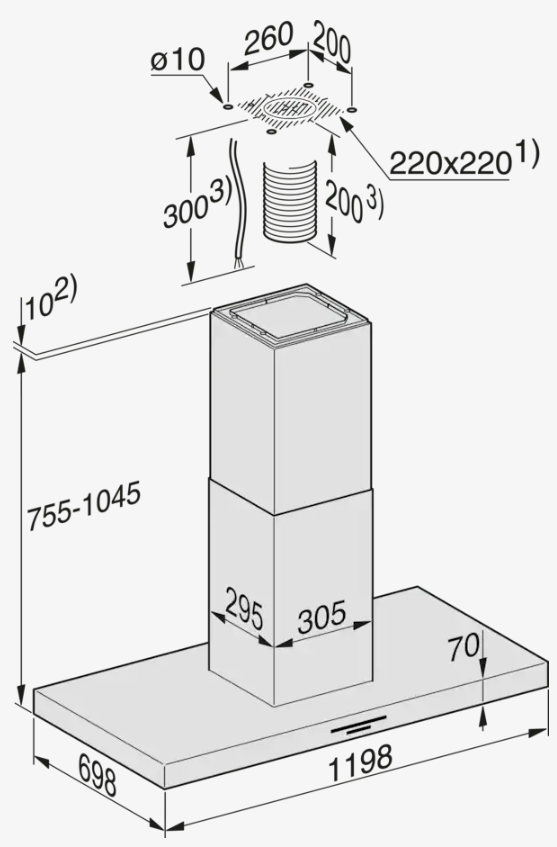

TECHNICAL DIAGRAM
 |
