OVERVIEW
| Type: Extractor unit with energy-efficient LED lighting and rotary dials for easy use |
| Model: DA 2450-1 |
CONSTRUCTION TYPE
| Integrated extractor |
OPERATING MODES
| Type of air guide: Can be retrofitted |
| Active charcoal filter (order separately): DKF 15-P |
DESIGN
| Colour: Stainless steel |
USER CONVENIENCE
| Electronic controls |
| Rotary dial |
| Power levels (number without Booster level): 2 |
CLEANING CONVENIENCE
| Easy-to-clean canopy interior – CleanCover |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply): 1 |
LIGHTING
| LED |
| Number x W: 2 x 3 W |
| Light intensity in Lx: 330 lx |
| Colour temperature in K: 3000 Kelvin |
BLOWER
| Fan power (m³/h): 620 |
| Dual-action blower |
| AC motor |
EXTRACTION
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 47 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 54 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 66 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 32 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 40 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 52 |
RECIRCULATION
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 52 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 61 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 71 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 38 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 47 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 57 |
TECHNICAL DATA
| Standard plug fitted |
| Total rated load in kW: 0.226 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Frequency in Hz: 50 |
| Number of phases: 1 |
INSTALLATION NOTES
| Extraction ducting connection at top |
| Extraction connection at top and rear |
ACCESSORIES SUPPLIED
| Non-return flap |

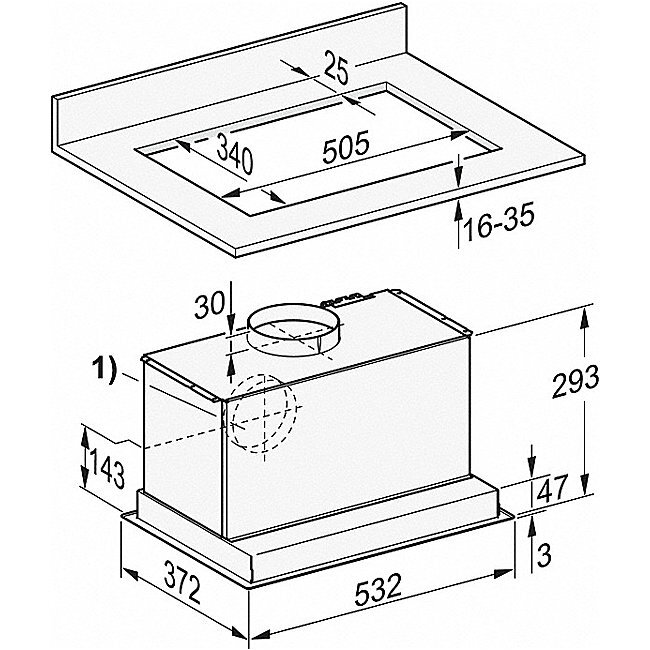

TECHNICAL DRAWING
2 YEARS WARRANTY
