OVERVIEW
| Type: Miele 60cm Slimline Pullout Rangehood with EasySwitch controls for convenient operation |
| Model: DAS 4620 |
| Dimensions: 3.2cm (h) x 59.6cm (w) x 27.3cm (d) |
| Finish: Stainless steel |
CONSTRUCTION TYPE
| Slimline Pullout Rangehood |
DESIGN
| Colour: Stainless steel |
OPERATING MODES
| Type of air guide: Convertible |
| Recirculation conversion kit (order separately): DUU 151 |
USER CONVENIENCE
| Networking with Miele@home |
| EasySwitch |
| Electronic controls |
| Booster levels: 1 |
| Programmable Booster level switch-off |
| Grease filter saturation indicator programmable |
| Active charcoal filter saturation indicator programmable |
| Automatic function Con@ctivity 3.0 (WiFi) |
| Run-on time 5 / 15 min. |
CLEANING CONVENIENCE
| Easy-to-clean canopy interior – CleanCover |
EFFICIENCY AND SUSTAINABILITY
| PowerManagement system |
FILTER SYSTEM
| Number of dishwasher safe stainless steel grease filters: 1 |
LIGHTING
| LED |
| Light intensity in Lx: 330 |
| Colour temperature in K: 3,500 |
| Dimmer function |
FAN
| Dual-action fan |
| AC motor |
AIR THROUGHPUT IN RECIRCULATION MODE
| Air throughput in Level 1 (m³/h): 345 |
| Air throughput in Level 2 (m³/h): 495 |
| Air throughput in Level 3 (m³/h): 655 |
| Air throughput in booster level 1 (m³/h): 865 |
| Sound power in Level 1 (dB(A) re 1 pW): 58 |
| Sound power in Level 2 (dB(A) re 1 pW): 68 |
| Sound power in Level 3 (dB(A) re 1 pW): 74 |
| Sound power in booster level 1 (dB(A) re1pW): 67 |
| Sound pressure in Level 1 (dB(A) re 20 µPa): 44 |
| Sound pressure in Level 2 (dB(A) re 20 µPa): 54 |
| Sound pressure in Level 3 (dB(A) re 20 µPa): 60 |
SAFETY
| Safety switch-off |
TECHNICAL DATA
| Canopy width in mm: 596 |
| Canopy height in mm: 36 |
| Canopy depth in mm: 273 |
| Net weight in kg: 14.0 |
| Length of supply lead in m: 1.8 |
| Standard plug fitted |
| Total rated load in kW: 0.29 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Number of phases: 1 |
INSTALLATION NOTES
| Extraction ducting connection at top |
| Diameter of extraction ducting connection in mm: 150 |
STANDARD ACCESSORIES
| Non-return flap |
AIR THROUGHPUT WITH MAX. DUCT DIAMETER IN EXTRACTION MODE (NOT FOR EXTERNAL VERSION)
| Air throughput in Level 1 (m³/h): 345 |
| Air throughput in Level 2 (m³/h): 500 |
| Air throughput in Level 3 (m³/h): 655 |
| Air throughput in booster level 1 (m³/h): 925 |
| Sound power in Level 1 (dB(A) re 1 pW): 50 |
| Sound power in Level 2 (dB(A) re 1 pW): 59 |
| Sound power in Level 3 (dB(A) re 1 pW): 65 |
| Sound power in booster level 1 (dB(A) re1pW): 73 |
| Sound pressure in Level 1 (dB(A) re 20 µPa): 36 |
| Sound pressure in Level 2 (dB(A) re 20 µPa): 45 |
| Sound pressure in Level 3 (dB(A) re 20 µPa): 51 |
| Sound pressure in booster level 1 (dB(A) re20µPa): 59 |

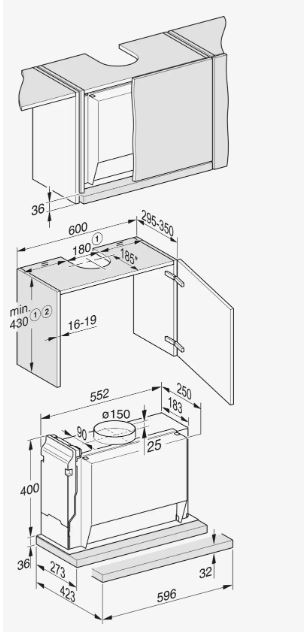

TECHNICAL DRAWING:
