OVERVIEW
| Type: Built-under rangehood with energy-efficient LED lighting and sliding switch for simple operation. |
| Model: DA 1260 |
CONSTRUCTION TYPE
| Built-under rangehood |
OPERATING MODES
| Type of air guide: Can be retrofitted |
| Active charcoal filter (order separately): DKF 18-P |
DESIGN
| Colour: Stainless steel |
USER CONVENIENCE
| Mechanical controls |
| Slide switch |
| Controls: Slide switch |
| Power levels (number without Booster level): 3 |
| Booster settings: 1 |
| Easy-to-clean canopy interior – CleanCover |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply): 2 |
LIGHTING
| LED |
| Number x W: 2 x 3 W |
| Light intensity in Lx: 330 lx |
| Colour temperature in K: 3000 Kelvin |
BLOWER
| Single-action blower |
| AC motor |
EXTRACTION
| Air throughput in Level 1 (m³/h) according to EN 61591: 275 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 315 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 355 |
| Air throughput with Booster setting 1 (m³/h): 545 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 57 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 60 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 64 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 43 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 47 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 50 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 74 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 60 |
RECIRCULATION
| Air throughput in Level 1 (m³/h) according to EN 61591: 165 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 180 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 195 |
| Air throughput with Booster setting 1 (m³/h) according to EN 61591: 220 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 71 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 72 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 73 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 57 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 58 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 59 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 75 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 62 |
TECHNICAL DATA
| Net weight in kg: 11.2 |
| Length of supply lead in m: 1.5 |
| Standard plug fitted |
| Total rated load in kW: 0.236 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Frequency in Hz: 50 |
| Number of phases: 1 |
| Canopy width in in. (mm): 598 |
| Canopy height in in. (mm): 125 |
| Depth of hood canopy in in. (mm): 500 |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650 |
INSTALLATION NOTES
| Extraction ducting connection at top |
| Diameter of extraction ducting connection in mm: 150 |
| Fitting template |
ACCESSORIES SUPPLIED
| Non-return flap |
| Deflector for recirculation |

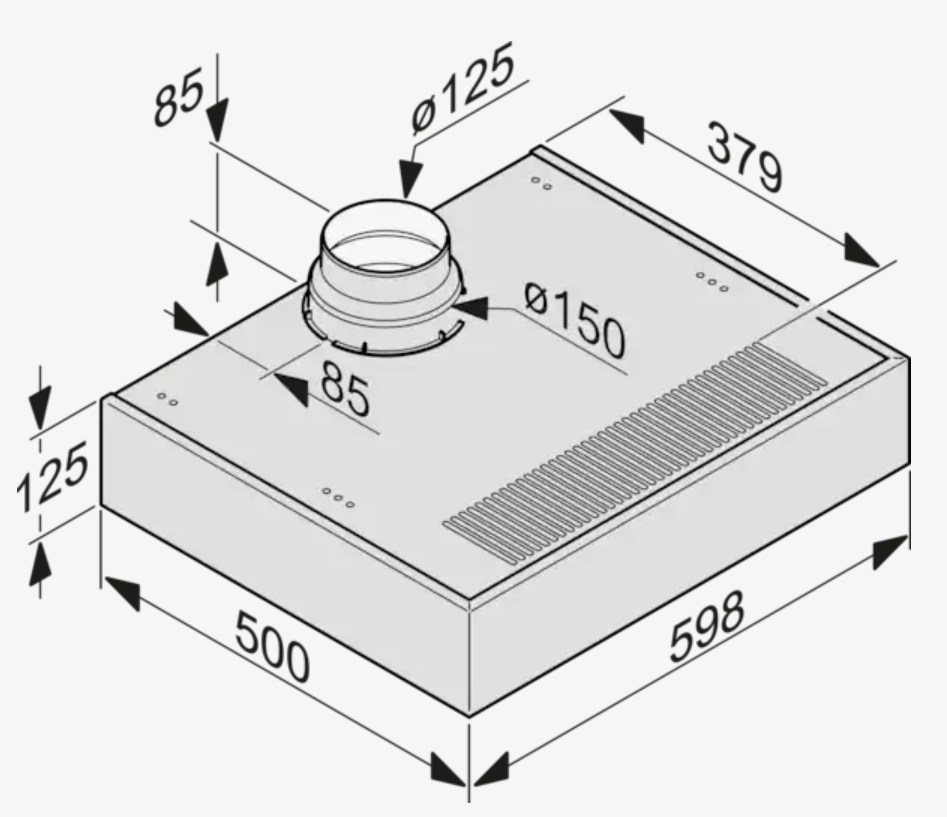

TECHNICAL DIAGRAM
 |
2 YEARS WARRANTY
