OVERVIEW
| Type: Wall mounted rangehood with energy-efficient LED lighting and touch controls for simple operation. |
| Model: DA 6698 W Puristic Edition 6000 |
CONSTRUCTION TYPE
| Wall-mounted rangehood |
OPERATING MODES
| Type of air guide: Can be retrofitted |
| Recirculation conversion kit (order separately): DUW 20 |
| Active charcoal filter (order separately): DKF 12-P |
DESIGN
| Colour: Stainless steel |
USER CONVENIENCE
| Miele@home |
| Automatic function Con@ctivity |
| Electronic controls |
| Touch controls |
| Controls: Touch-on-glass controls |
| Miele@mobile app |
| Power levels (number without Booster level): 3 |
| Booster settings: 1 |
| Programmable Booster level switch-off |
| Grease filter saturation indicator |
| Active charcoal filter saturation indicator |
| Silence package |
| Easy-to-clean canopy interior – CleanCover |
| Run-on time 5/15 min. |
EFFICIENCY AND SUSTAINABILITY
| PowerManagement system |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply): 3 |
LIGHTING
| LED |
| Number x W: 3 x 3 W |
| Light intensity in Lx: 670 lx |
| Colour temperature in K: 3500 Kelvin |
| Dimmer function |
BLOWER
| Fan power (m³/h): 990 |
| Dual-action blower |
| DC motor |
EXTRACTION
| Air throughput in Level 1 (m³/h) according to EN 61591: 320 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 480 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 640 |
| Air throughput with Booster setting 1 (m³/h): 880 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 46 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 56 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 64 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 31 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 41 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 49 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 72 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 57 |
RECIRCULATION
| Air throughput in Level 1 (m³/h) according to EN 61591: 200 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 330 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 390 |
| Air throughput with Booster setting 1 (m³/h) according to EN 61591: 460 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 55 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 65 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 68 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 40 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 50 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 53 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 73 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 58 |
SAFETY
| Safety shut-off |
| Single-ply safety glass (ESG) |
TECHNICAL DATA
| Overall height for extraction mode and external mode rangehoods in mm: 1030 |
| Overall height for recirculation mode rangehoods in mm: 1160 |
| Net weight in kg: 26 |
| Length of supply lead in m: 1.5 |
| Standard plug fitted |
| Total rated load in kW: 0.239 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Frequency in Hz: 50 |
| Number of phases: 1 |
| Overall height for vented and external in in. (mm): 710 |
| Overall height for recirculation in in. (mm): 840 |
| Canopy width in in. (mm): 898 |
| Canopy height in in. (mm): 85 |
| Depth of hood canopy in in. (mm): 500 |
INSTALLATION NOTES
| Extraction ducting connection at top |
| Extraction connection at top and rear |
| Diameter of extraction ducting connection in mm: 150 |
| Telescopic chimney |
ACCESSORIES SUPPLIED
| Non-return flap |

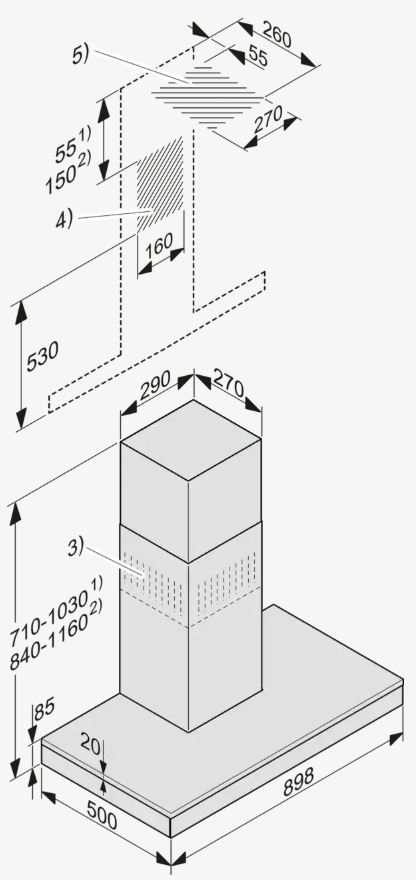

TECHNICAL DIAGRAM
 |
2 YEARS WARRANTY
