OVERVIEW
| Type: Miele 93cm Downdraft extractor system in elegant matt black design and with intuitive SmartControl operation |
| Model: DAD4940 |
| Dimensions: 93.6cm (w) x 17.0cm (d) |
| Finish: Matt black |
CONSTRUCTION TYPE
| Wall-mounted rangehood |
DESIGN
| Colour: Matt black |
OPERATING MODES
| Type of air guide: Convertible |
USER CONVENIENCE
| Electronic controls |
| Power levels (including booster levels): 5 |
| Booster levels: 2 |
| Programmable Booster level switch-off |
EFFICIENCY AND SUSTAINABILITY
| PowerManagement system |
| ECO package |
FILTER SYSTEM
| Number of dishwasher safe stainless steel grease filters: 2 |
LIGHTING
| Light intensity in Lx: 400 |
| Colour temperature in K: 3,500 |
| Dimmer function |
FAN
| Dual-action fan |
| ECO motor (DC motor) |
AIR THROUGHPUT IN RECIRCULATION MODE
| Air throughput in Level 1 (m³/h): 160 |
| Air throughput in Level 2 (m³/h): 320 |
| Air throughput in Level 3 (m³/h): 415 |
| Air throughput in booster level 1 (m³/h): 520 |
| Air throughput in booster level 2 (m³/h): 555 |
| Sound power in Level 1 (dB(A) re 1 pW): 50 |
| Sound power in Level 2 (dB(A) re 1 pW): 64 |
| Sound power in Level 3 (dB(A) re 1 pW): 69 |
| Sound power in booster level 1 (dB(A) re1pW): 61 |
| Sound power in booster level 2 (dB(A) re1pW): 76 |
| Sound pressure in Level 1 (dB(A) re 20 µPa): 37 |
| Sound pressure in Level 2 (dB(A) re 20 µPa): 50 |
| Sound pressure in Level 3 (dB(A) re 20 µPa): 56 |
| Sound pressure in booster level 2 (dB(A) re20µPa): 62 |
SAFETY
| Safety switch-off |
| Single pane tempered glass |
TECHNICAL DATA
| Canopy width in mm: 936 |
| Canopy depth in mm: 170 |
| Net weight in kg: 34.0 |
| Length of supply lead in m: 1.5 |
| Standard plug fitted |
| Total rated load in kW: 0.25 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Number of phases: 1 |
INSTALLATION NOTES
| Diameter of extraction ducting connection in mm: 150 |
| Combination with WiFi-enabled Miele hob: Recommended |
AIR THROUGHPUT WITH MAX. DUCT DIAMETER IN EXTRACTION MODE (NOT FOR EXTERNAL VERSION)
| Air throughput in Level 1 (m³/h): 200 |
| Air throughput in Level 2 (m³/h): 340 |
| Air throughput in Level 3 (m³/h): 440 |
| Air throughput in booster level 1 (m³/h): 600 |
| Air throughput in booster level 2 (m³/h): 640 |
| Sound power in Level 1 (dB(A) re 1 pW): 44 |
| Sound power in Level 2 (dB(A) re 1 pW): 57 |
| Sound power in Level 3 (dB(A) re 1 pW): 62 |
| Sound power in booster level 1 (dB(A) re1pW): 70 |
| Sound power in booster level 2 (dB(A) re1pW): 72 |
| Sound pressure in Level 1 (dB(A) re 20 µPa): 30 |
| Sound pressure in Level 2 (dB(A) re 20 µPa): 43 |
| Sound pressure in Level 3 (dB(A) re 20 µPa): 49 |
| Sound pressure in booster level 1 (dB(A) re20µPa): 56 |
| Sound pressure in booster level 2 (dB(A) re20µPa): 58 |

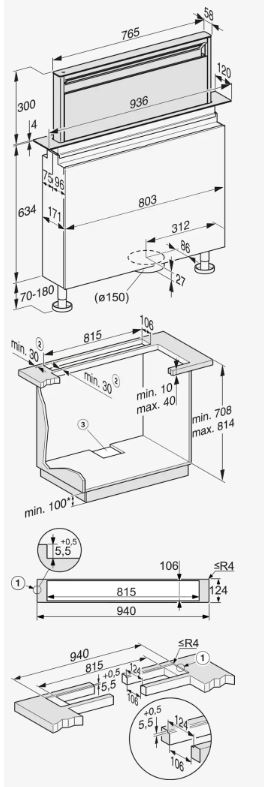

TECHNICAL DRAWING
