TYPE
| Model: CS9GMXA2 |
| Product Family: Cooker |
| Cooker size: 90x60 cm |
| Hob energy type: Gas |
| Hob type: Gas |
| Type of main oven: Thermoseal |
| Cleaning system: Vapour Clean |
| EAN code: 8017709330958 |
| N. of ovens: 1 |
AESTHETICS
| Colour: Stainless steel |
| Finishing: Satin |
| Aesthetic: Classic |
| Design: Square design |
| Serie: Sinfonia |
| Material: Stainless steel |
| Door: With 2 horizontal strips |
| Command panel finish: Finger friendly stainless steel |
| Hob colour: Stainless steel |
| Handle: Smeg Classic |
| Controls colour: Stainless steel |
| Upstand: Yes |
| Display: Touch |
| Type of pan stands: Cast Iron |
| Glass type: Eclypse |
| Handle Colour: Brushed stainless steel |
| Control knobs: Smeg Classic |
| Feet: Silver |
| Plinth: Stainless steel |
| Storage compartment: Door |
| No. of controls: 8 |
PROGRAMS / FUNCTIONS
| Traditional Cooking Functions |
| Static |
| Fan Assisted |
| Circulaire |
| Eco |
| Small Grill |
| Large Grill |
| Fan Grill (Large) |
| Base |
| Fan Assisted Bottom |
OPTIONS MAIN OVEN
| Timer: Yes |
| End of cooking acoustic alarm: Yes |
| Minimum Temperature: 50 °C |
| Maximum temperature: 260 °C |
HOB TECHNICAL FEATURES
| 1st zone position: Front left |
| 2nd zone position: Rear left |
| 3rd zone position: Front centre |
| 4th zone position: Rear centre |
| 5th zone position: Rear right |
| 6th zone position: Front right |
| 1st zone type: Gas - UR |
| 2nd zone type: Gas - AUX |
| 3rd zone type: Gas - AUX |
| 4th zone type: Gas - Semi Rapid |
| 5th zone type: Gas - Rapid |
| 6th zone type: Gas - Semi Rapid |
| 1st zone power: 4.40 kW |
| 2nd zone power: 1.05 kW |
| 3rd zone power: 1.05 kW |
| 4th zone power: 2.10 kW |
| 5th zone power: 3.30 kW |
| 6th zone power: 2.10 kW |
| Type of gas burners: Standard |
| Burner caps: Matt black enamelled |
| Automatic electronic ignition: Yes |
| Gas safety valves: Yes |
| Total no. of cook zones: 6 |
MAIN OVEN TECHNICAL FEATURES
| Net volume of the cavity: 115 l |
| Gross volume, 1st cavity: 129 l |
| Cavity material: Ever Clean enamel |
| Type of shelves: Metal racks |
| Light type: Halogen |
| Light Power: 40 W |
| Fan number: 2 |
| Cooking time setting: Start and Stop |
| Door opening: Flap down |
| Light when oven door is open: Yes |
| Removable door: Yes |
| Full glass inner door: Yes |
| Removable inner door: Yes |
| Safety Thermostat: Yes |
| Cooling system: Tangential |
| Grill type: Electric |
| Grill elememt: 1700 W |
| Large grill - Power: 2900 W |
| Lower heating element power: 1700 W |
| Upper heating element - Power: 1200 W |
| Circular heating element - Power: 2 x 1550 W |
| Temperature control: Electro-mechanical |
| No. of shelves: 5 |
| No. of lights: 2 |
| Total no. of door glasses: 3 |
| No.of thermo-reflective door glasses: 2 |
ELECTRICAL CONNECTION
| Electrical connection rating: 3200 W |
| Current: 14 A |
| Voltage: 220-240 V |
| Voltage 2 (V): 220/240 V |
| Frequency: 50/60 Hz |
| Power supply cable length: 120 cm |
| Type of electric cable installed: Yes, Single phase |
GAS CONNECTION
| Gas connection rating (W): 13800 W |
| Gas Type: G20 Natural gas |
LOGISTIC INFORMATION
| Dimensions of the product HxWxD (mm): 900x900x600 mm |
| Width (mm): 900 mm |
| Product Height (mm): 900 mm |
| Depth (mm): 600 mm |
| Dimensions of the packed product (mm): 860X960X670 mm |
| Gross weight (kg): 86.900 kg |
| Net weight (kg): 76.600 kg |
| Packed width: 960 mm |
| Packaged depth: 670 mm |
| Height (mm) packed: 860 mm |
| Maximum stackability: 5 |
| Type of packaging: Shrinkwrap |
| Packaging composition - paper & cardboard (kg): 5.240 kg |
| Packaging composition - polystyrene (kg): 1.442 kg |
| Packaging composition - wood (kg): 2.660 kg |
| Packaging composition - plastic (kg): 0.939 kg |
ACCESSORIES INCLUDED
| Other gas nozzles included: G30 LPG liquid gas |
ACCESSORIES INCLUDED FOR MAIN OVEN & HOB
| Cast iron wok support: 1 |
| Rack with back and side stop: 1 |
| Grill mesh: 1 |
| 20mm deep tray: 1 |
| 40mm deep tray: 1 |
| Telescopic Guide rails, total Extraction: 1 |

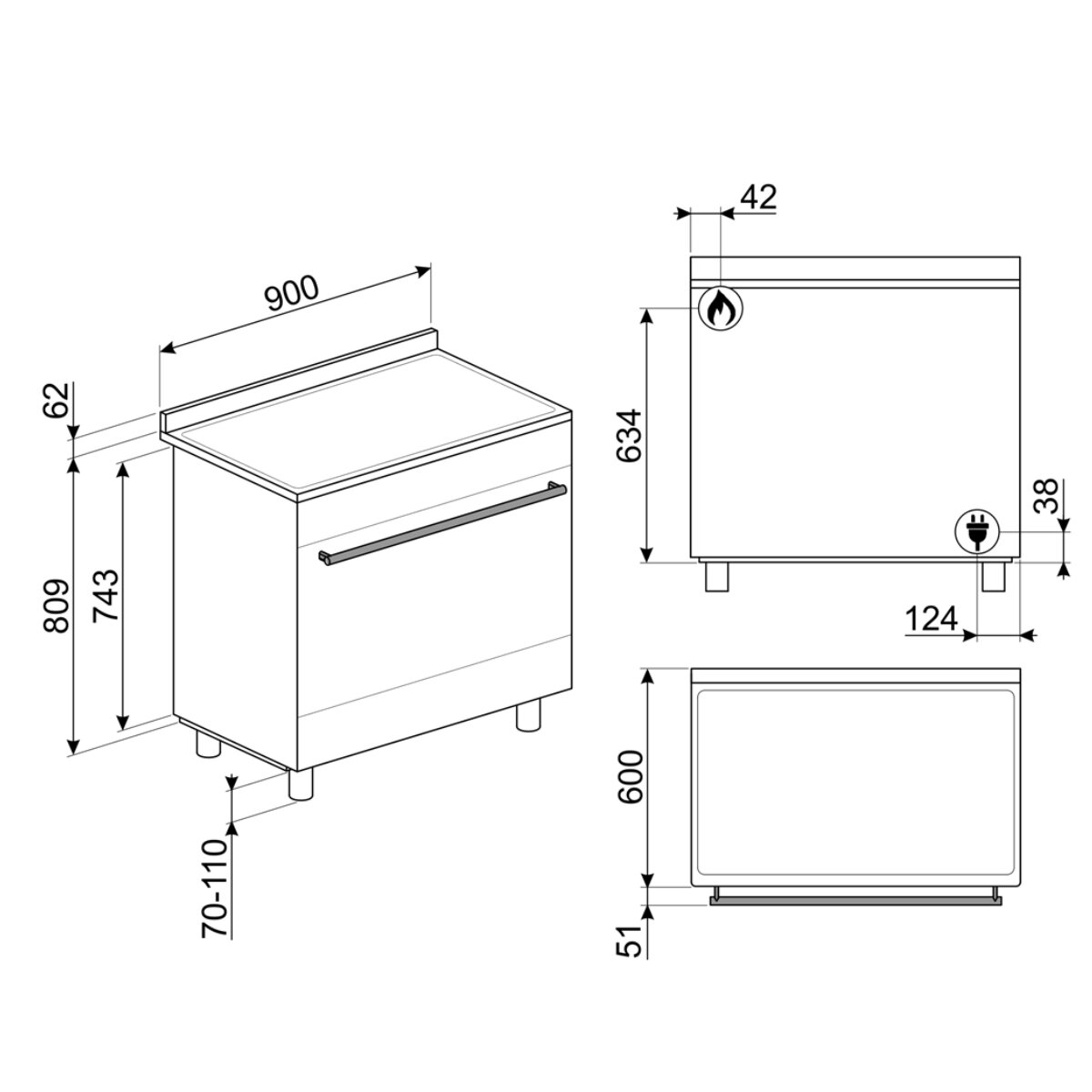

TECHNICAL DRAWING
