SIZE & TYPE: |
51cm intergrated rangehood |
|
|
MODEL: |
WRI500SB |
|
|
FINISH: |
Stainless Steel |
|
|
DIMENSIONS: |
512mmW x 200mmH x 304mmD |
|
|
WARRANTY: |
2 Years |
|
|
MOTOR/FAN: |
|
FILTERS: |
|
Number of fans |
1 |
Number of filters |
1 |
Number of fans speeds |
2 |
Type of filter |
multilayer aluminum micromesh filters |
Number of motors |
1 |
DIMENSIONS: |
|
Wattage of motor |
100 |
Diameter of ducting (mm) |
120 |
Type of motor |
single motor |
Minimum installation height from cooking surface Gas (mm) |
650 |
Perimeter extraction |
No |
Minimum installation height from cooking surface Electric (mm) |
600 |
Maximum airflow M3/Hr |
340 |
Cut out width (mm) |
455 |
Noise level dB high |
67 |
Cut out depth (mm) |
276 |
Noise level dB low |
49 |
Cut out height (mm) |
200 |
LIGHTS: |
|
DUCTING / RECIRCULATION: |
|
Number of lights |
2 |
Ducting |
optional accessory |
Wattage of light |
5.5 |
Top or rear duct hole |
top |
Type of light |
LED |
Recirculation option |
Yes |
CONTROLS: |
|
Recirculation kit |
optional accessory |
Control panel |
slide switch control |
Front recirculating option |
No |
Safety/ display indicators |
auto thermal cutout safety switch |
Type of filter |
carbon |
Hob2Hood function |
No |
Filter |
optional |
|
|
Number of optional filters required |
two |

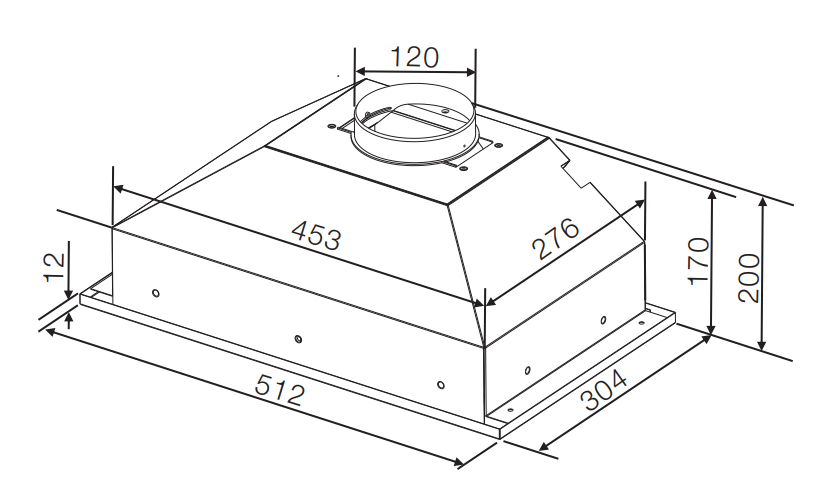

TECHNICAL DRAWING: |
|
|
|
|
|
|
2 YEARS WARRANTY
