SIZE & TYPE: |
60cm slide out rangehood |
|
|
|
MODEL: |
WRR604SB |
|
|
|
FINISH: |
Stainless Steel/Grey |
|
|
|
DIMENSIONS: |
598mmW x 175mmH x 300mmD |
|
|
|
WARRANTY: |
2 Years |
|
|
|
MOTOR/FAN: |
|
FILTERS: |
|
|
Number of fans |
2 |
Number of filters |
2 |
|
Number of fans speeds |
3 |
Type of filter |
multilayer aluminum micromesh filters |
|
Number of motors |
2 |
DIMENSIONS: |
|
|
Wattage of motor |
125 |
Diameter of ducting (mm) |
120 |
|
Type of motor |
centrifugal |
Minimum installation height from cooking surface Gas (mm) |
650 |
|
Perimeter extraction |
No |
Minimum installation height from cooking surface Electric (mm) |
600 |
|
Maximum airflow M3/Hr |
340 |
Total product width (mm) |
598 |
|
Noise level dB high |
66 |
Total product depth (mm) |
300 |
|
Noise level dB low |
57 |
Total product height (mm) |
175 |
|
LIGHTS: |
|
DUCTING / RECIRCULATION: |
|
|
Number of lights |
2 |
Ducting |
optional accessory |
|
Wattage of light |
5.5 |
Top or rear duct hole |
top |
|
Type of light |
LED |
Recirculation option |
Yes |
|
CONTROLS: |
|
Recirculation kit |
optional accessory |
|
Control panel |
auto activated pull/push |
Front recirculating option |
Yes |
|
Safety/ display indicators |
automatic safety cut off |
Type of filter |
charcoal |
|
|
|
Filter |
optional |
|
|
|
Number of optional filters required |
two |
|

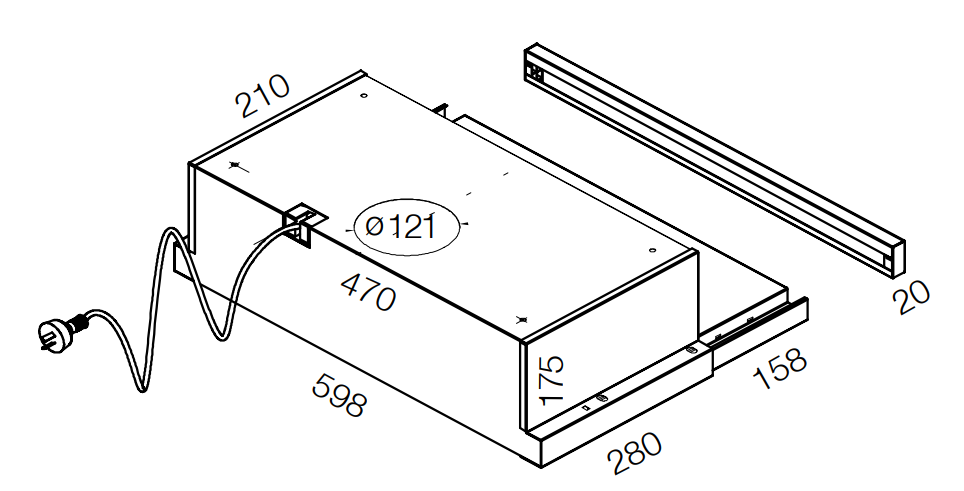

TECHNICAL DRAWING: |
|
|
|
|
|
|
|
|
2 YEARS WARRANTY
