SIZE & TYPE: |
90cm slide out rangehood |
|
|
MODEL: |
WRR926SB |
|
|
FINISH: |
Stainless Steel/grey |
|
|
DIMENSIONS: |
898mmW x 273mmH x 300mmD |
|
|
WARRANTY: |
2 Years |
|
|
MOTOR/FAN: |
|
FILTERS: |
|
Number of fans |
2 |
Number of filters |
2 |
Number of fans speeds |
2 |
Type of filter |
multilayer aluminum micromesh filters |
Number of motors |
1 |
DIMENSIONS: |
|
Wattage of motor |
240 |
Diameter of ducting (mm) |
150 |
Type of motor |
centrifugal |
Minimum installation height from cooking surface Gas (mm) |
650 |
Perimeter extraction |
No |
Minimum installation height from cooking surface Electric (mm) |
600 |
Maximum airflow M3/Hr |
600 |
Total product width (mm) |
898 |
Noise level dB high |
66 |
Total product depth (mm) |
300 |
Noise level dB low |
51 |
Total product height (mm) |
273 |
LIGHTS: |
|
DUCTING / RECIRCULATION: |
|
Number of lights |
2 |
Ducting |
optional accessory |
Wattage of light |
4 |
Top or rear duct hole |
top |
Type of light |
LED |
Recirculation option |
Yes |
CONTROLS: |
|
Recirculation kit |
optional accessory |
Control panel |
switch and slide |
Front recirculating option |
No |
Safety/ display indicators |
automatic safety cut off |
Type of filter |
carbon |
Removal front fascia |
Yes |
Filter |
optional |
|
|
Number of optional filters required |
two |

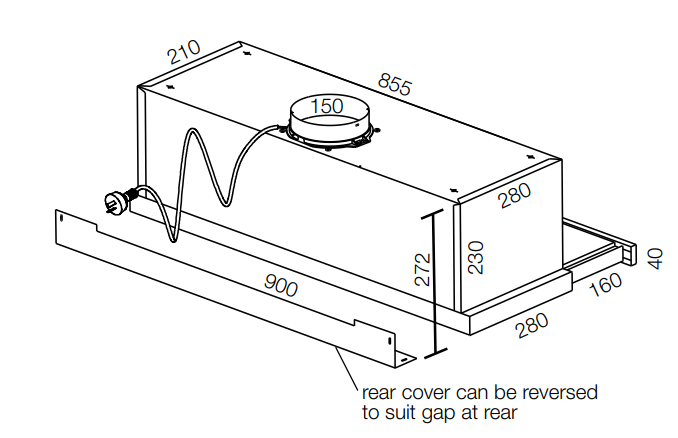

TECHNICAL DRAWING: |
|
|
|
|
|
|
2 YEARS WARRANTY
